Home > Products > Ricardo Diesel Engine > Weichai Ricardo 4102 diesel engine 34kw

Weichai Ricardo 4102 diesel engine 34kw

  • Weichai Ricardo 4102 diesel engine 34kw
  • Weichai Ricardo 4102 diesel engine 34kw
  • Weichai Ricardo 4102 diesel engine 34kw
  • Weichai Ricardo 4102 diesel engine 34kw

Weichai Ricardo 4102 diesel engine 34kw

Basic Info

Model No.: HF-4102

Product Description

Model HF480BD HF485BD HF485BZD HF485BZLD HF495DS HF4100DS HF4100ZDS HF4102DS HF4105DS HF4105DS-38 HF4105DS-46 HF4105ZDS HF4105ZLDS HF4105ZDS HF4105ZLDS HF6105DS HF6105ZDS HF6105AZLDS HF6105BZLDS HF6110ZLDS HF6126-42D HF6126A HF6127A HF12D-308 HF6113ZLDS
Aspiration Nature Nature Turbo-charged Turbo-charged inter-cooler Nature Nature Turbo-charged Nature Nature Nature Nature Turbo-charged Turbo-charged inter-cooler Turbo-charged Turbo-charged inter-cooler Nature Turbo-charged Turbo-charged inter-cooler
Combustion

Direct injection swirl chamber Direct injection
Cylinder 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6
BoreXStroke(mm) 80×90 85×90 85×90 85×90 95×115 100×115 100×115 102×115 105×120 105×120 105×120 105×120 105×120 105×125 105×125 105×125 105×125 105×130 105×135 110×135 126×130 126×135 127×135 126×155 113×125
Displacement(L) 1.81 2.04 2.04 2.04 3.26 3.61 3.61 3.92 4.15 4.15 4.15 4.15 4.15 4.33 4.33 6.49 6.49 6.75 7.01 7.69 9.73 10.09 10.25 11.6 7.52
Compression ratio 18:1 18:1 18:1 18:1 19:1 19:1 19:1 19:1 17:1 17:1 17:1 17:1 17:1 17:1 17:1 17:1 17:1 17:1 17:1 17:1 16:1 17:1 17:1 17:1 17:1
Rated power(KW) 14 17 22 26 26.5 30.1 42 33 38 38 46 56 66 56 66 58 84 110 132.5 170 210 230 250 288 155
Speed(r/min) 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
Maximum rotating speed(r/min) 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575 1575
Minimum no-load stable speed(r/min) 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650
Piston speed(m/s) 9 9 9 9 11.5 11.5 11.5 11.5 12 12 12 12 12 12.5 12.5 12.5 12.5 13 13.5 13.5 13 13 13 15.5 13.5
Fuel consumption rate(g/kw.h) 247 247 247 247 258 258 251 258 230 230 230 225 225 225 225 225 225 218 218 218 215 215 215 215 228
12h power fuel flow rate(L/h) 4.12 5.00 6.47 7.65 8.14 9.25 12.55 10.14 10.40 10.40 12.60 15.00 17.68 15.00 17.68 15.54 22.50 28.55 34.39 44.12 53.75 58.87 63.99 73.71 42.07
The rotation direction of the crankshaft (facing the flywheel) Anti-clockwise
Cooling water cooling
Lubrication Pressure splash compound
Start electric start
Net weight(kg) 195 200 215 240 330 380 395 350 360 360 360 400 420 445 490 535 570 630 640 670 1050 1090 1090 1240 620

Exhaust temperature
600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600
Inlet pipe diameter(mm) 51 51 51 51 55 55 60 55 47 47 47 60 60 60 60 76 76 76 76 76 100 100 100 100 76
oil capacity(L) 7 7 7 7 13 13 13 13 13 13 13 13 13 16 16 17 17 17 17 17 27 27 27 27 17
Maximum oil temperature() 100 100 100 100 100 100 105 100 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105
Oil consumption g/kw.h 2.72 2.72 2.72 2.72 2.04 2.04 2.04 2.04 2.04 2.04 2.04 2.04 2.04 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63
Total cooling water capacity (L) 10 10 10 10 13 13 13 13 13 13 13 13 13 16 16 23 23 23 23 23 39 39 39 39 23

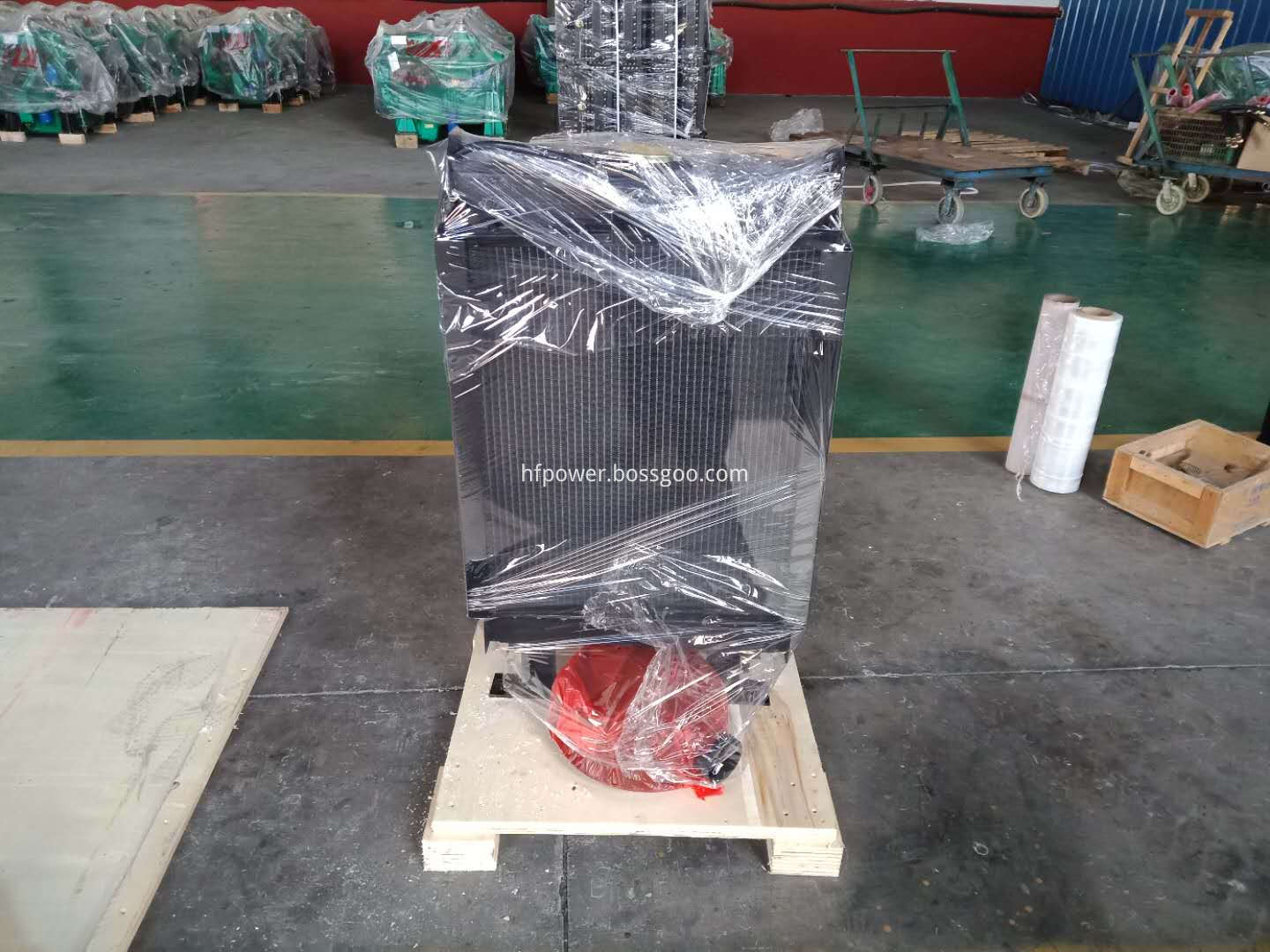

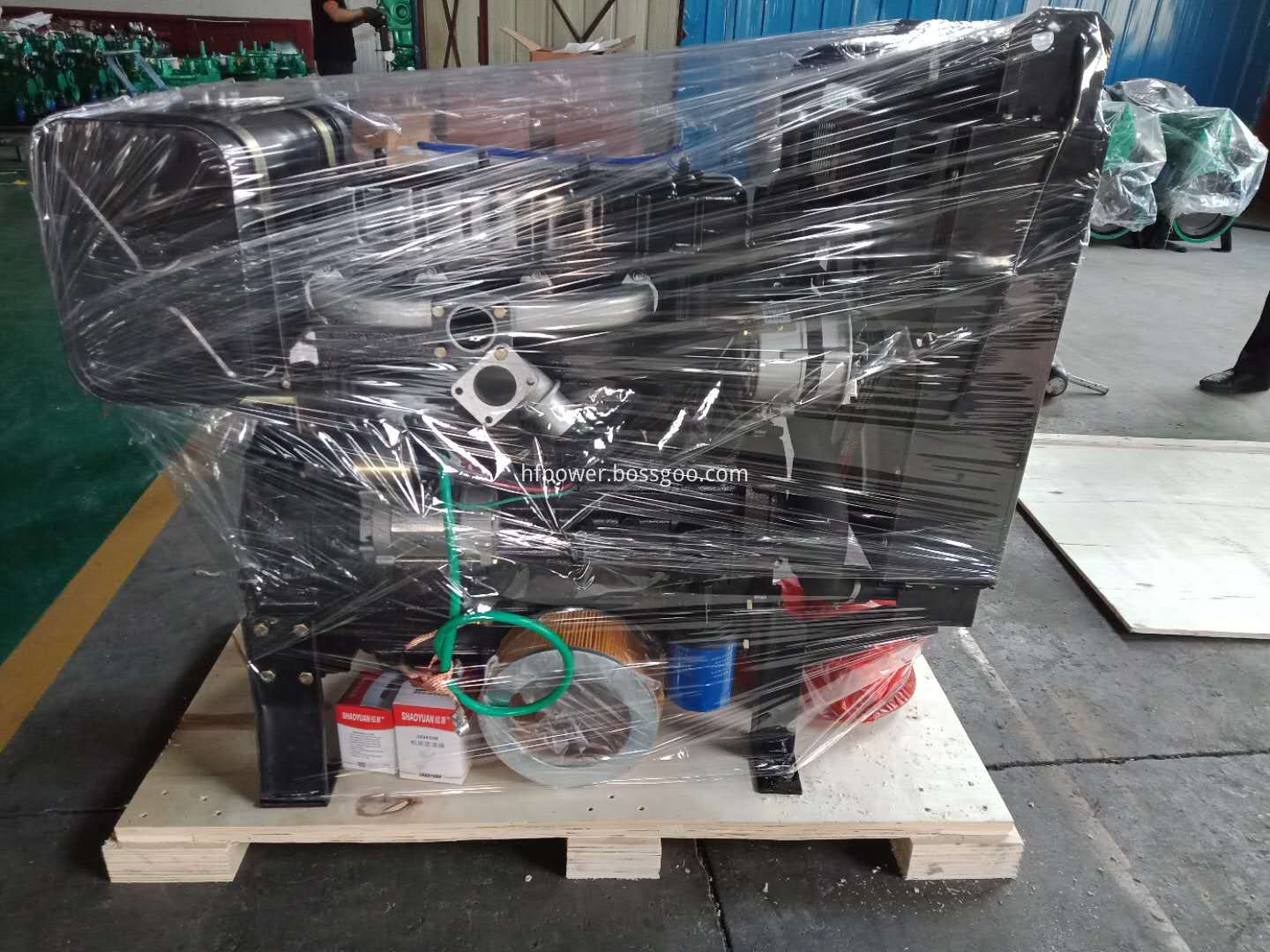

webwxgetmsgimg (1)webwxgetmsgimg (2)

Shijiazhuang Houfeng Trading Co.,Ltd

 As a professional manufacturer and supplier in the field of Diesel Engine parts, the products of HF POWER cover DEUTZ, CUMMINS, LOVOL, DOOSAN and other brands, HF POWER has always been committed to providing one-stop solution for domestic and foreign customers. HF power has become a group with an engine plant, a generating set factory and a parts supply center. HF POWER continues to develop in the competitive market due to high-quality products, competitive prices and professional service. Because we can fully understand and meet customer needs, we have established cooperation and business relationships with many foreign countries and regions. Our customers are all over North America, South America, Europe, Australia, Middle East, Southeast Asia and Africa and other regions. As an engine field related supplier, our goal is to become the leader of the 1-step power solutions in China, we have the confidence and ability to provide customers with one-stop power solutions from the engine to the generator sets and Spare Parts, at the same time, provide strong support and continuous improvement. Our Products: Diesel engines: DEUTZ, CUMMINS, DOOSAN, LOVOL, LIJIA, ISUZU, MTU, etc. Series vehicle, industrial, power generation,marine, agricultural diesel engines; Generator sets: DEUTZ, CUMMINS, PERKINS, LOVOL, DOOSAN, MTU series Diesel Generator sets and natural gas generator sets as well as small diesel generators and gasoline generators and Water Pump sets with the power range from1kW to 2,000kW; Diesel Engine Parts: DEUTZ, CUMMINS series diesel engine supporting parts, and we can develop new products based on customers' requirements. Our vision: To become the leader of 1-step power solutions Our philosophy: Specialty Integrity Cooperation Win-win situation Our value: Aggressiveness Experience Feeling Progress
